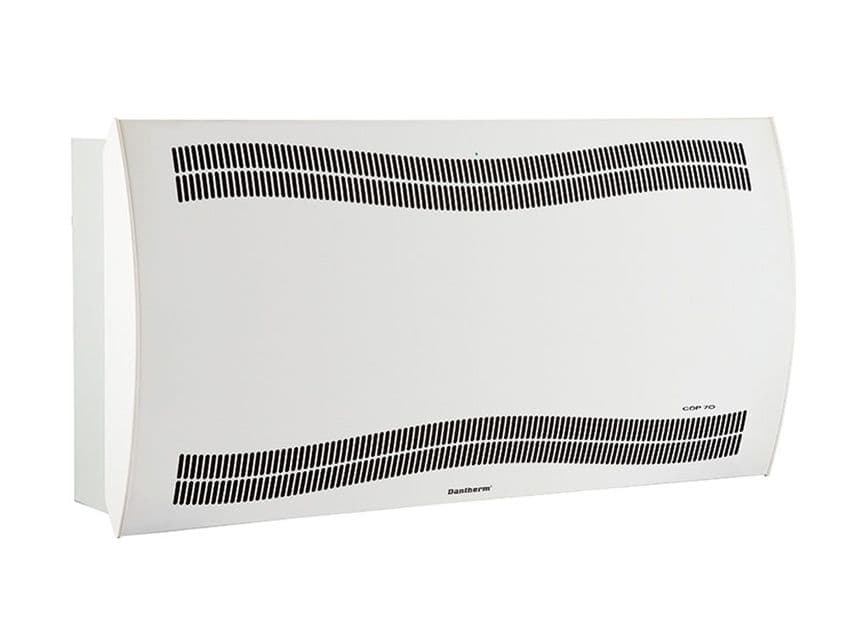

Dantherm CDP Dehumidifier CDP40/CDP40T
Dantherm CDP Dehumidifier CDP40/CDP40T
Dantherm CDP Dehumidifier CDP40/CDP40T
Dantherm CDP Dehumidifier CDP40/CDP40T

Dantherm CDP Dehumidifier CDP40/CDP40T

Dantherm CDP 40-50-70 dehumidifiers for humidity control in indoor swimming pools are developed with a focus to quality, functionality and energy saving. Highly efficient fans and compressors, combined with a new advanced remote control and control options, contribute to cost-efficient operation and significant energy savings.
  • Low sound level
  • Low energy consumption
  • Evaporator and condenser coils are epoxy coated
  • Metal parts are powder coated before assembly
  • Optional remote control
  • Integrated control of heating and humidity (ON/OFF)
  • BMS communication (Modbus)
  • USB gate for PC Tool
  • Direct connection of 230 V on external box
Optional accessories
  • Wireless remote control DRC1 (see related items below)
  • Floor mounting kit (see related items below)
  • Water heating coils
  • Control valve for water heating coil (see related items below)
  • Electric heating coils
  • Exhaust fans

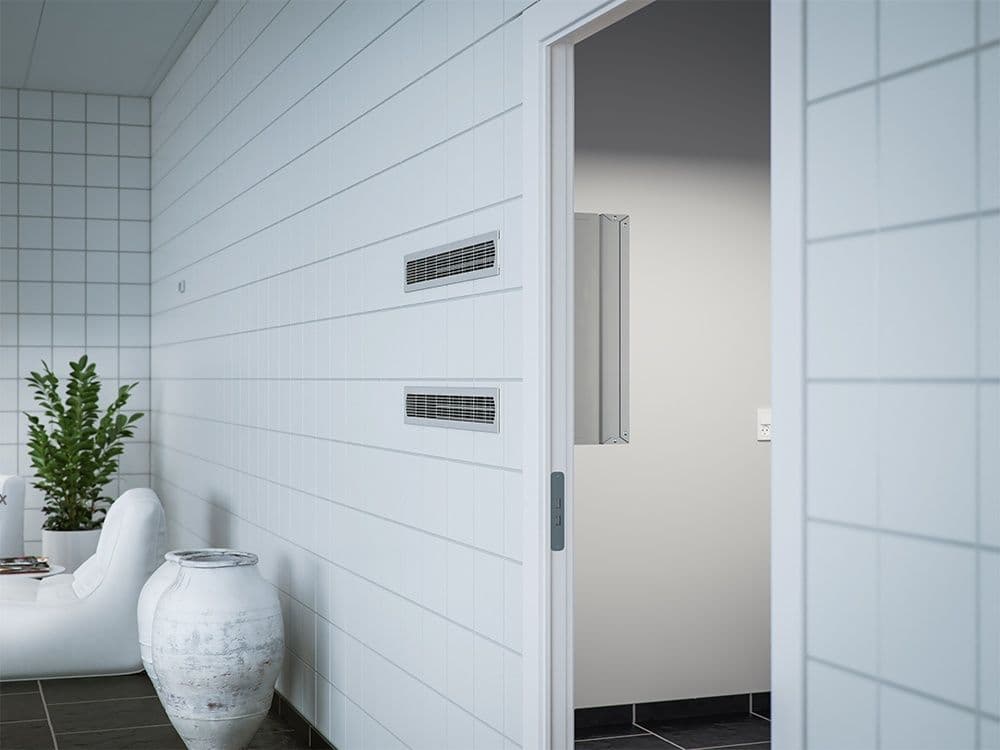

  • Through-wall duct kit with filter, extension kit and alu grill
Applications
  • Indoor pools
  • Therapy pools
  • Health clubs and wellness centres
  • Hotels and spa pools
  • Holiday parks and campsites
Specifications Units CDP 40 CDP 40(T) CDP 50 CDP 50(T) CDP 70 CDP 70(T)
Operating temperature range °C 10-36 10-36 10-36 10-36 10-36 10-36
Operating humidity range % RH 40-100 40-100 40-100 40-100 40-100 40-100
Dehumidification @ 28°C/60% RH l/24h 34 34 52 52 69 69
Air flow m³/h 400 400 680 680 900 900
Sound pressure level dB(A) 46 43 47 44 50 47
Power supply V/Hz 230/1ph/50 230/1ph/50 230/1ph/50 230/1ph/50 230/1ph/50 230/1ph/50
Product size (h x w x d) mm 770 x 1010 x 326 700 x 998 x 304 700 x 1160 x 326 770 x 1148 x 304 770 x 1495 x 326 700 x 1483 x 304
Weight kg 56.5 57.5 65.0 66.0 75.5 77.5


NOTE:  If selecting the LPHW Heating option, the on/off control valve should also be purchased (see related items below).
Brand: Dantherm
Product Code: CDP40
Weight: 56kg
