Features & Benefits
- Easy to install
- Safe
- Reliable
- Easy touch screen programming
- Floor or wall mountable (bracket supplied)
- Digital water flow signal – no pump interlock required
- Titanium heating elements – zero corrosion guaranteed
- Dual cascade wired Siemens Electric contactors on each element bank
- Digital timers for staged energisation
- Optional Titan Optima plus with titanium flow tubes for sea water applications
- 100% operational efficiency throughout product life

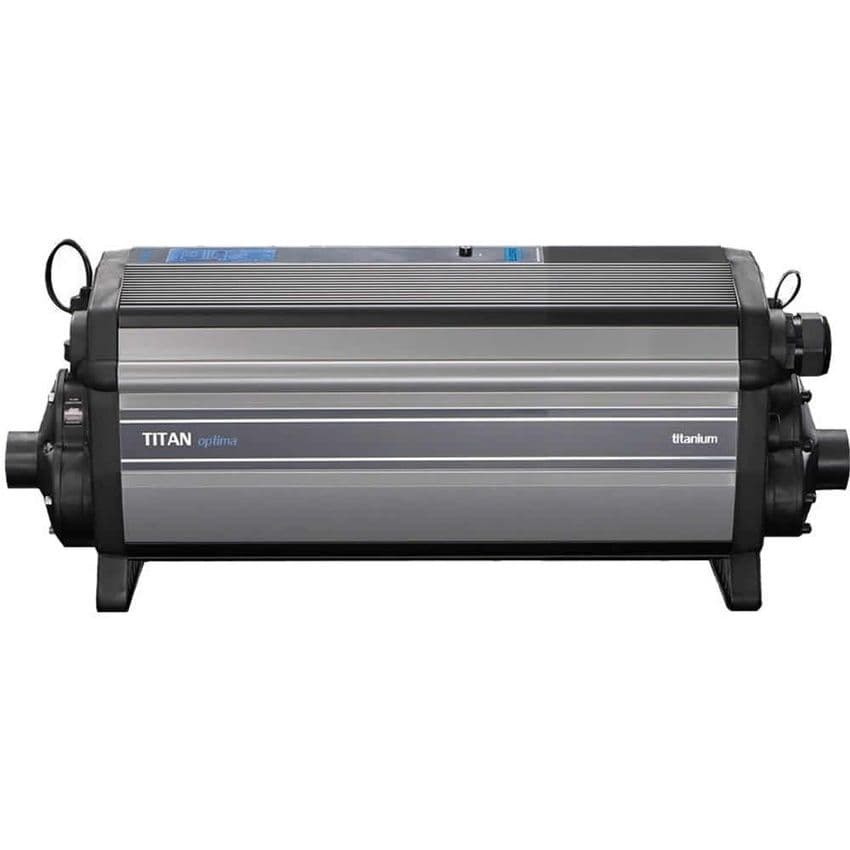

The Electro Titan Optima can be stored in two different ways - It can be vertically wall mounted using a bracket which is supplied or it can be stored on the floor. The Heater has an easy touch screen to use with Blue digital characters that can be read even when direct sunlight is on it. The heater will run on 100% efficiency throughout its life time giving you a maintenance free service.
All Elecro electric heaters feature our unique and proven coiled heating element technology whereby a turbulent vortex is created in the water flow. This delivers outstanding efficiency and extended life expectancy by preventing the build up of mineral deposits on the heating element.
The heater’s outlet manifold accommodates a flow switch that provides a digital signal to the control board, while the inlet manifold has been designed to minimise flow imbalance between the flow tubes, eliminating the risk of air locking. Safety and equipment protection is provided by a flow switch, with over-heating prevented by one auto-reset and one manual-reset thermal safety cut-out’s.
Technical Specification
| Flow Requirements | Minimum Flow: 3-kW to 6-kW = 1m³/hour 9-kW to24-kW = 4m³/hour Maximum Flow : 17m³/hour Recommended: 10m³/hour |
| Heating Elements | Titanium, low watts density |
| Flow Tubes | Optima Compact = BS 316L Stainless Steel Optima Compact PLUS = Titanium |
| Control Thermostat Options | - BMS Integration Ready with touch screen control panel - Standard Digital 0.5°C differential (without BMS integration or touch screen) - Analogue 1.2°C differential |
| Safety Thermostat | 55° C (manual reset) |
| Flow Switch | Gold tipped reed switch with Titanium fulcrum pin |
| Contractors | Duel Siemens Electric |
| Wiring | High temperature, silicone sheathed, multi-strand copper conductors |
| Seals | High temperature special formula EPDM |
| Water Connections | 1½" BSP female thread supplied with: 1½" / 50mm ABS unions for rigid pipe 1½" / 1¼" hose tails for flexible pipe |
| Working Pressure | 4 bar maximum |
| Mounting | Floor or wall mountable (wall bracket supplied) |
| Standards compliance | European Electromagnetic Compatibility directive |
| Harmonised standards | The European Low Voltage Directive and The Harmonised Standard |
| MPN: | CP-TS-120 |
| Brand: | Elecro |
| Condition: | New |
| Product Code: | CP-TS-120 |
