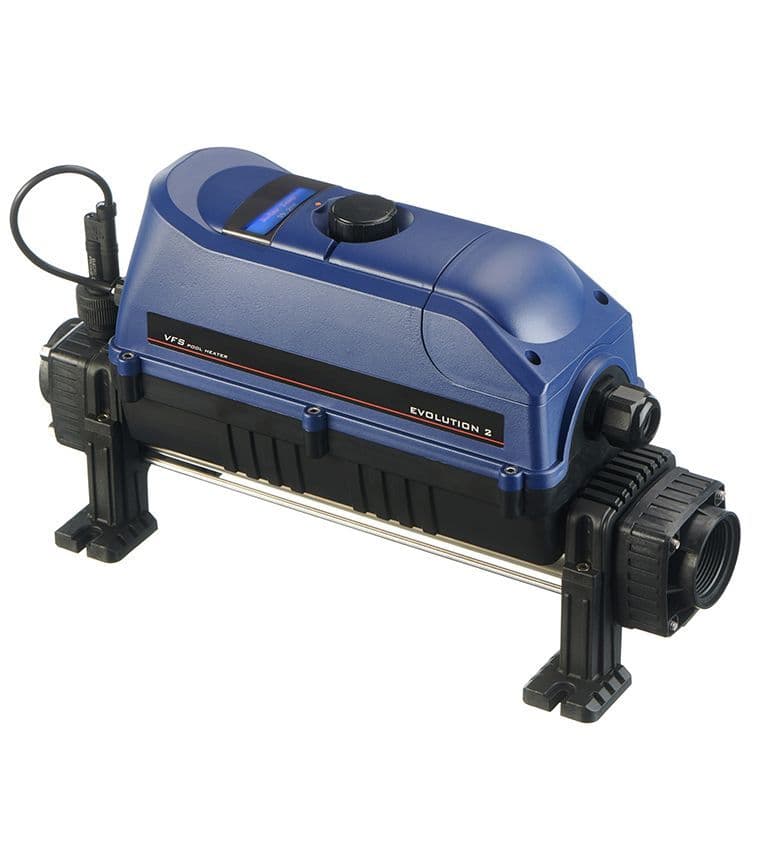

Elecro Evolution 2 Heater - 15kw 1-Phase

A fully titanium heater by Elecro, Evolution 2 is the upgraded version of the Evolution.  It provides efficiency, safety and above all reliability to effortlessly heat your pool or spa to the desired temperature.

Features & Benefits

  • Ten power options ranging from 1-kW to 24-kW
  • Easy installation, fully equipped and pre-wired
  • Robust, durable construction
  • Ultra-reliable flow switch allows safe operation
  • Temperature thermostat and overheating sensor
  • Compact, durable design
  • Analogue control with 1.2˚C differential or digital control with 0.5˚C differential and selectable multi-lingual display
  • Titanium flow tube and titanium heating element
  • Can be floor or vertically wall mounted
  • Vortex, long life, stay clean heating element technology
  • 100% efficiency throughout the product life
  • Silent operation

Specifications:

Power Supply Single phase or 3 phase
Min. Flow Rate Minimum flow: 2-kW or 6-kW, 1m3/h Minimum flow: 9-kW to 24-kW, 4m3/h
Max Flow Rate Maximum Flow: 17m3/h
Heating Element Grade 1 Titanium
Flow Tube Grade 1 Titanium
Control Thermostat Analogue: 0>45°C (1.2°C differential) Digital 0 > 45°C (0.5°C differential)
Safety Thermal Cut Out 60°C (manual reset)
Flow Switch

Gold tipped reed switch with titanium fulcrum pin
Contractors Siemens 3RT2023 or 3RT2027
Seals High temperature special formula EPDM ferrules.TPE end fitting gaskets
Water Connections

1 ½“ BSP female thread supplied with 1 ½“ / 50mm stepped ABS unions for rigid pipe and 1 ½“ / 1 ¼“ stepped hose tails for flexible pipe
Ingress Protection Rating  IP44
Frequency  50/60 Hz
Working Pressure 4 bar maximum
Mounting  Floor or wall mounting

Note:  Please note Electric Heaters 12kW and over are not stock items and are generally special order.  If your order is urgent, please call to check availability and a lead time prior to ordering.
MPN: HEV150
Brand: Elecro Evo
Condition: New
Product Code: HEV150
Weight: 1kg
