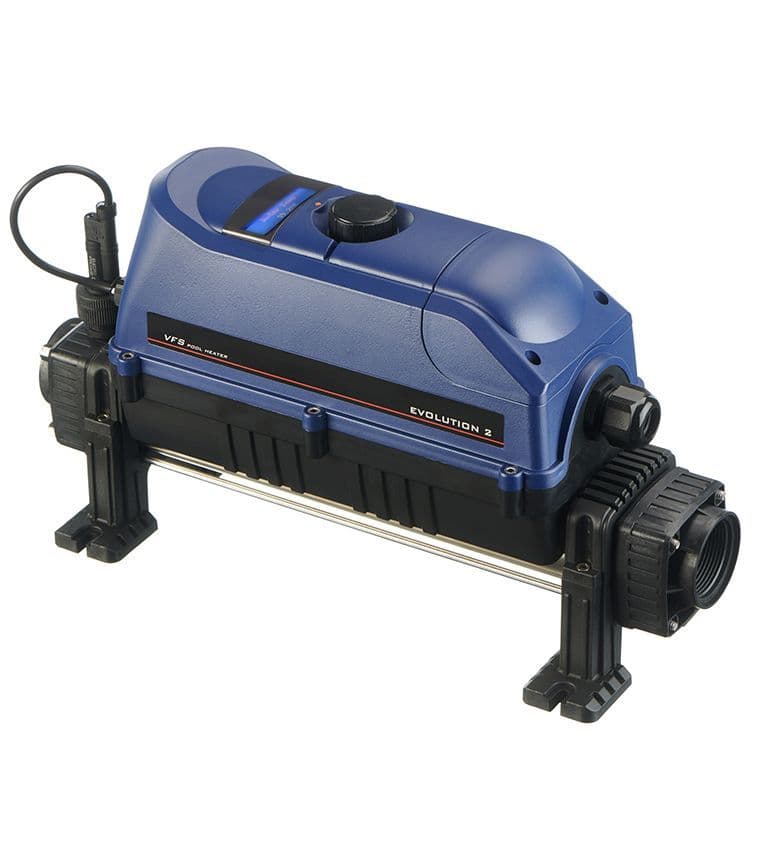

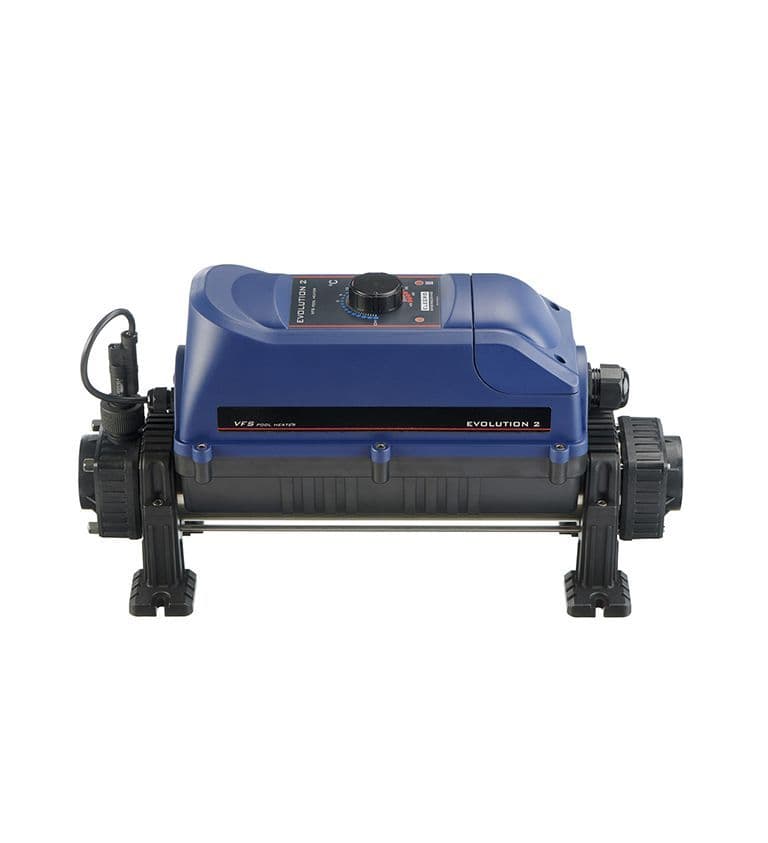

Elecro Evolution 2 Electric Heater - 4.5Kw 1-Phase

A fully titanium heater by Elecro, Evolution 2 is the upgraded version of the Evolution.  It provides efficiency, safety and above all reliability to effortlessly heat your pool or spa to the desired temperature.

Please note this heater will require professional electrical installation and will not connect to a standard mains outlet.

Features & Benefits

  • Ten power options ranging from 1-kW to 24-kW
  • Easy installation, fully equipped and pre-wired
  • Robust, durable construction
  • Ultra-reliable flow switch allows safe operation
  • Temperature thermostat and overheating sensor
  • Compact, durable design

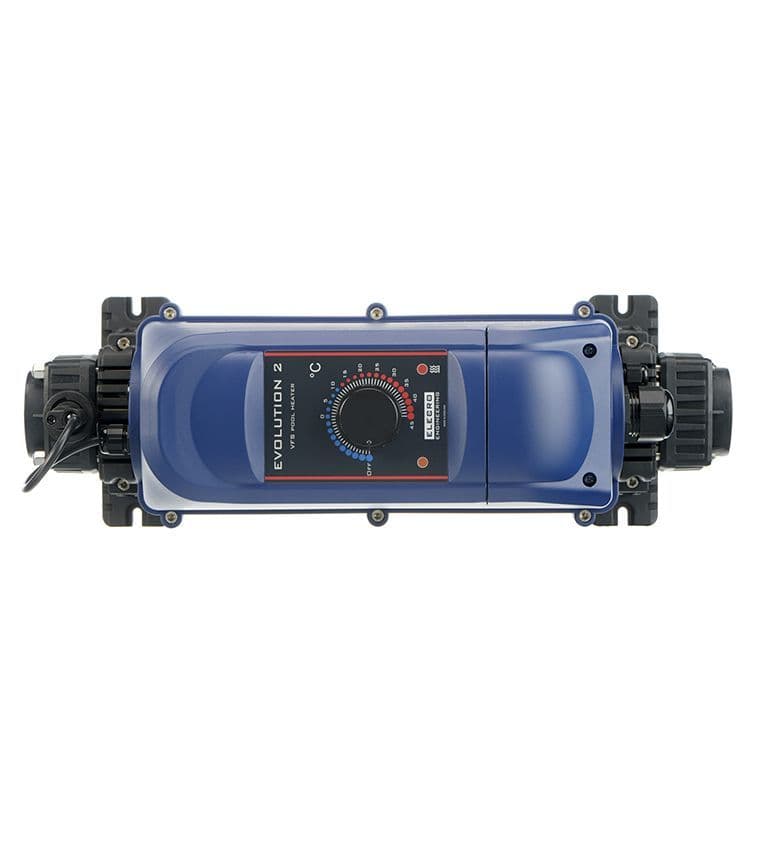

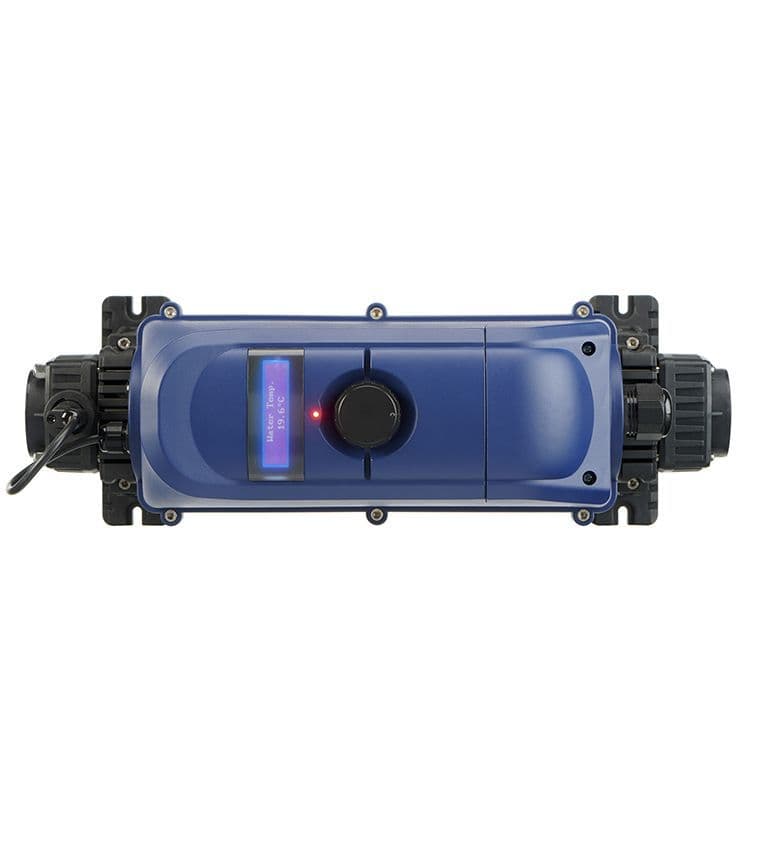

  • Analogue control with 1.2˚C differential or digital control with 0.5˚C differential and selectable multi-lingual display
  • Titanium flow tube and titanium heating element
  • Can be floor or vertically wall mounted
  • Vortex, long life, stay clean heating element technology
  • 100% efficiency throughout the product life
  • Silent operation

Specifications:

Power Supply Single phase
Min. Flow Rate

Minimum flow: 2-kW or 6-kW, 1m3/h

Minimum flow: 9-kW to 24-kW, 4m3/h
Max Flow Rate Maximum Flow: 17m3/h
Heating Element Grade 1 Titanium
Flow Tube Grade 1 Titanium
Control Thermostat Analogue: 0>45°C (1.2°C differential) Digital 0 > 45°C (0.5°C differential)
Safety Thermal Cut Out 60°C (manual reset)
Flow Switch

Gold tipped reed switch with titanium fulcrum pin
Contractors Siemens 3RT2023 or 3RT2027
Seals High temperature special formula EPDM ferrules.TPE end fitting gaskets
Water Connections

1 ½“ BSP female thread supplied with 1 ½“ / 50mm stepped ABS unions for rigid pipe and 1 ½“ / 1 ¼“ stepped hose tails for flexible pipe
Ingress Protection Rating  IP44
Frequency  50/60 Hz
Working Pressure 4 bar maximum
Mounting  Floor or wall mounting

MPN: HEV045
Brand: Elecro
Condition: New
Product Code: HEV045
Weight: 1kg
