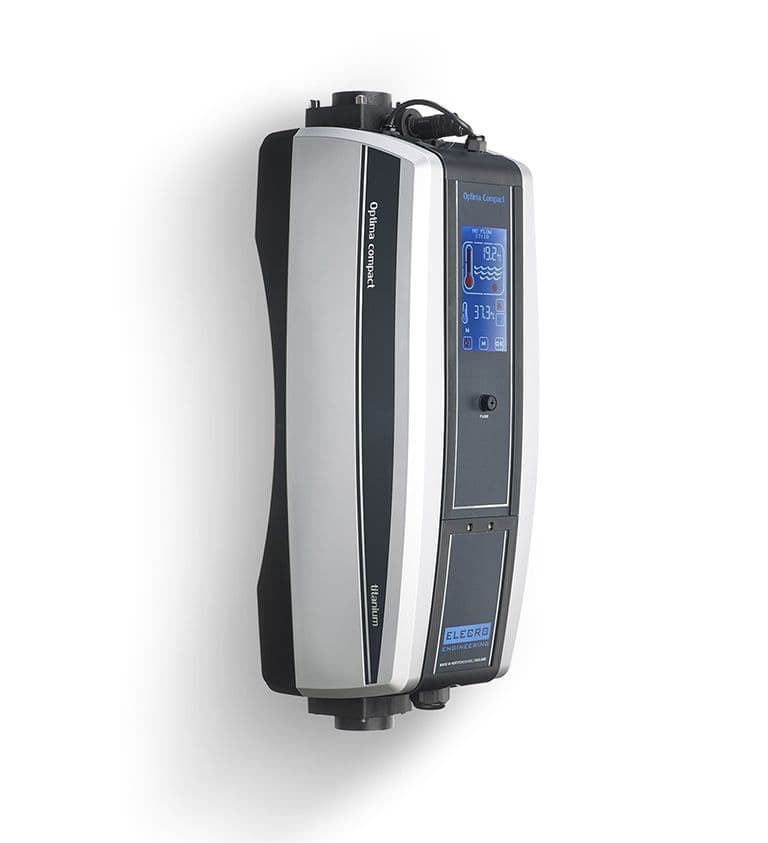

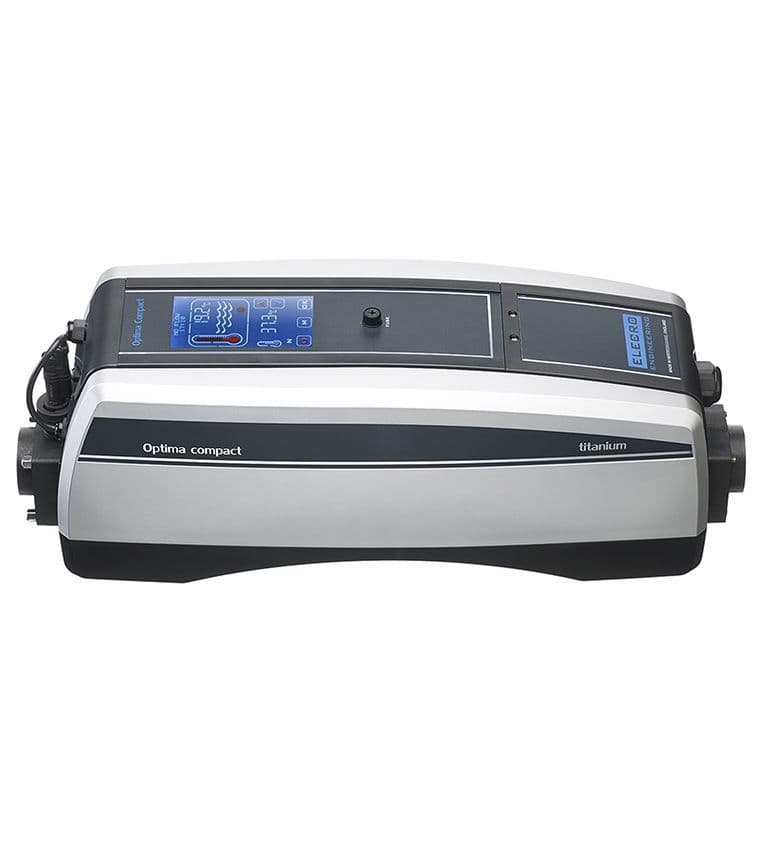

Optima Compact
Top of the range comes with touchscreen, ideal for pools and spas. The Optima Compact fully titanium heater ensures maximum safety, reliability and efficiency, the design makes it highly robust and durable.
Features & Benefits
- Nine power options ranging from 3-kW to 24-kW
- Easy installation, fully equipped and pre-wired
- Robust, durable construction
- Ultra-reliable flow switch allows safe operation
- Fitted with temperature thermostat and overheating sensor
- Compact, durable design
- Touchscreen control with soft-start for power supply protection
- Titanium flow tube and titanium heating element(s)
- Can be floor or vertically wall mounted
- Vortex, long life, stay clean heating element technology
- 100% efficiency throughout the product life
- Silent operation
Technical Specification
| Flow requirements | Minimum Flow: 3-kW to 6-kW = 1m³/hour 9-kW to24-kW = 4m³/hour Maximum Flow : 17m³/hour Recommended: 10m³/hour |
| Heating Elements | Titanium |
| Flow Tubes | Titanium |
| Control Thermostat Options |
Digital 0 to 45 degrees Celsius - Touch Screen BMS Integration Ready |
| Safety Thermostat | 55° C (manual reset) |
| Flow Switch | Gold tipped reed switch with Titanium fulcrum pin |
| Contactors | Dual Schneider Electric |
| Water Connections | 1½" BSP female thread supplied with: 1½" / 50mm ABS unions for rigid pipe |
| Mounting | Floor or wall mountable |
| MPN: | HEOCD14 |
| Brand: | Elecro |
| Condition: | New |
| Product Code: | HEOCD14 |
