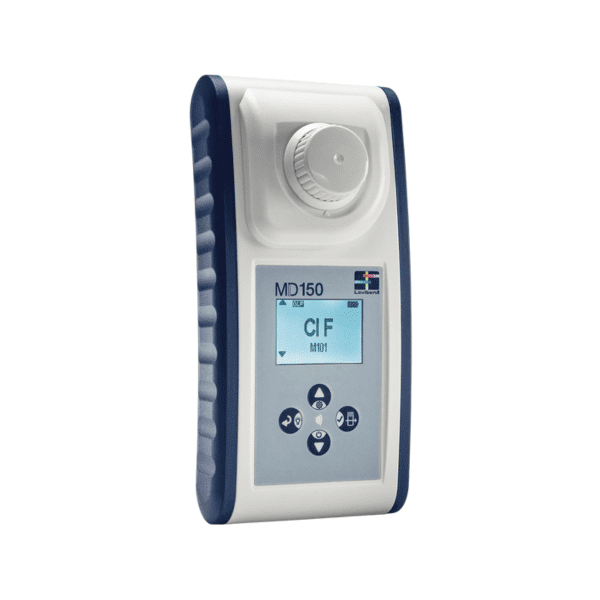

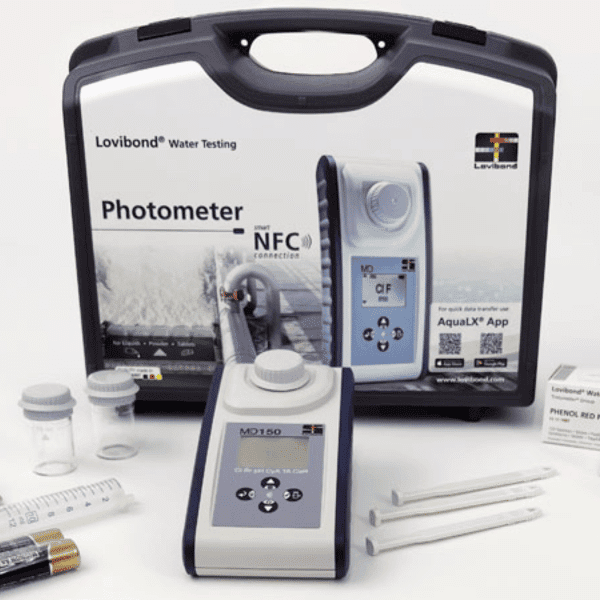

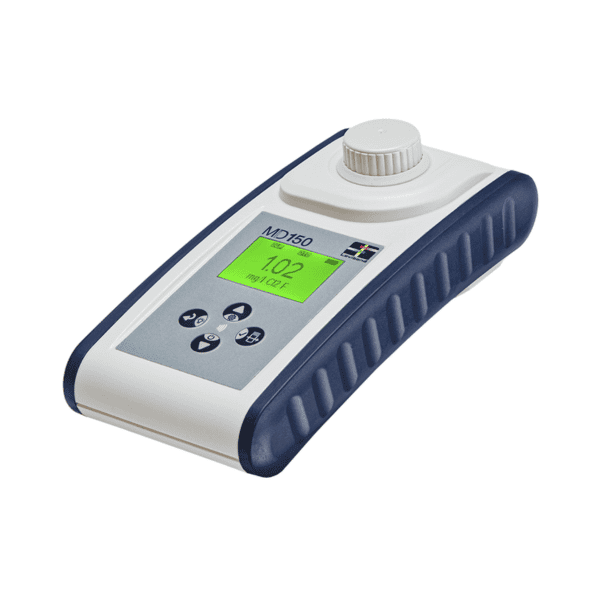

Lovibond MD150 - 3in1 Photometer Test Kit

Description

Wireless (NFC) and wired (USB-C) data transfer options
Free Software and App for easy data management
Intuitive user interface with easy-use icons and animations
Exceptional durability to withstand demanding conditions

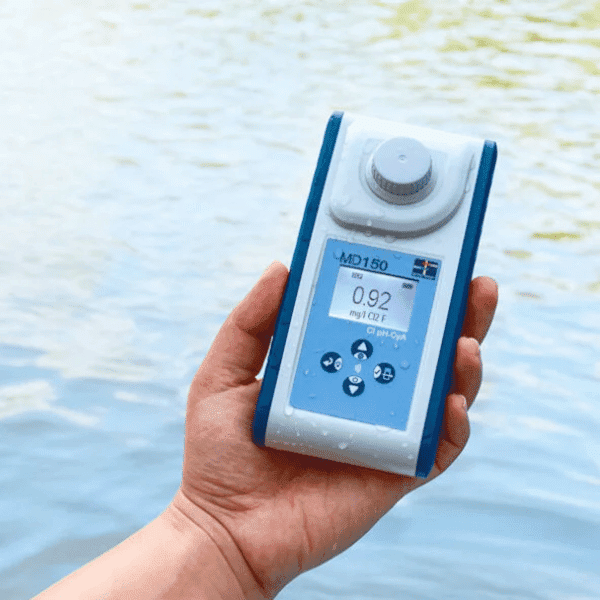

The MD150, building on the legacy of the proven MD100 photometer, offers even more high-quality features and ease of use. Whether you're monitoring pool water or managing other water treatment needs, the MD150 provides versatile multiparameter combinations. With enhanced high-precision optics, the MD150 delivers unmatched accuracy and efficiency, making it the ideal solution for various water testing needs.

AquaLX^® app

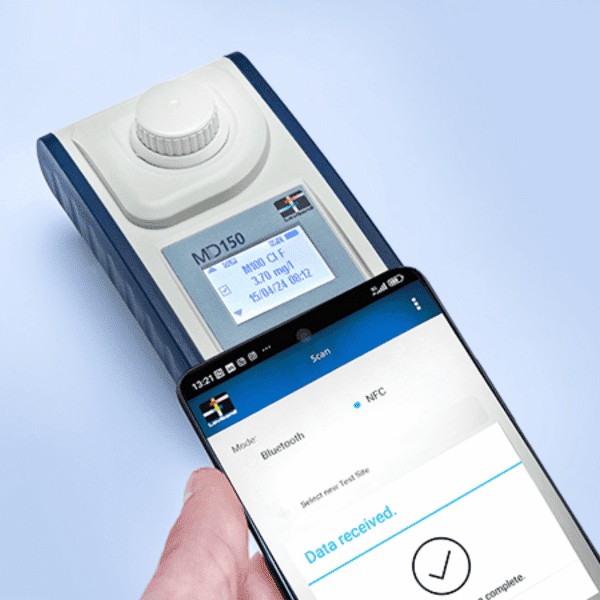

The free AquaLX^{^®} app is ideally designed for on-site measurements. It is compatible with IOS^{^®}- and Android^{^®}-based smartphones and tablets and offers effortless data transfer via NFC. It displays all measured values as a clear graph with minimum and maximum values and supports the export of data as an Excel^®-compatible CSV file.

Lovibond^® Data Expert software

The Lovibond^® Data Expert software utilises USB-C connectivity for fast and reliable data transfer to the Windows-based PC. To realise the full potential of the MD150 photometers, Lovibond Data Expert software provides a platform for creating a custom method and effortlessly updating firmware and methods. Further analyses of the results can be performed by exporting the data as a CSV file. The software is available free of charge in the ‘Downloads’ section of the MD150 photometers on the Lovibond website.

Ranges

Cl 0.02-6.0 and 0.1-10ppm
pH 6.5 – 8.4

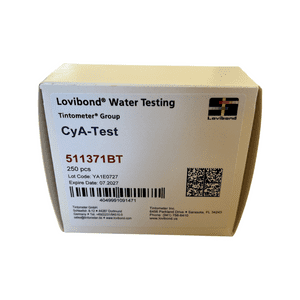

Cyanuric Acid 10 - 200ppm

Technical Specs

Optics	LED, spectrometer sensor, interference filter
Light Source	LED
Wavelength	Variant specific (415, 445, 480, 515, 530, 555, 590, 630, 680)
Photometric Range	0 - 3 Abs
Photometric Accuracy	3 % FS (T = 20 °C – 25 °C)
Suitable Vials	Round Cuvettes 13 mm Round Cuvettes 16 mm Round Cuvettes 24 mm
Display	Backlit LCD

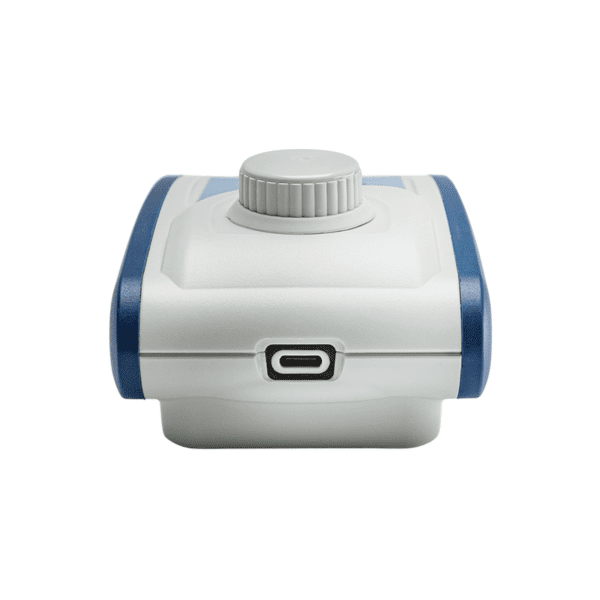

Interfaces	USB-C NFC (Near Field Communication)
Data Transfer Format	.csv
Operation	Foil keypad
Auto – OFF	Yes
Programmability	yes with Lovibond Data Expert software
Calibration	Factory and user adjustment - return to factory adjustment possible at any time
Updates	Firmware and methods update
Internal Storage	Internal ring memory for 100 data records
Power Supply	2 x AA batteries Alkaline Batteries (LR6) 3V DC / 55mA
Battery Life Time	approx. 5000 measurements (without backlight)
Portability	Portable
Degree of Pollution	2
Maximum altitude above sea level	3500 m
Environmental Conditions	5 - 50 °C at a relative humidity of 30 - 95 % (non-condensing)
IP Rating	IP 67
Compliance	CE
Languages Full User Manual	English, German, Spanish, French, Portuguese, Italian, Dutch, Turkish, Chinese
Dimensions	155 x 76 x 45 mm
Weight	247 g

PDF Brochure
